SKU:51778756
Specifications: Case: ABS BlackScreen Size: 14.9inchDimension Size: 412x142x31 (HxVxD)mmDisplay Area: 360.94x109.98 (HxV)mmAspect Ratio: 16:9 (4:3 optional in menu) Screen Resolution: 1280x390 PixelsScreen Brightness: 400cd/m2Screen Contrast: 500:1View Angle: 80/80/45/75 (Typ.)(CR≥10) [Left / Right / Up / Down]Response Time: <8msVideo Input: HD-MI DVI VGAVideo Output: Speaker EarphoneStandby Model <0.3WOperating Temperature: 0 degree to 45 degreeStorage Temperature: -20 degree to 60 degreeWeight: 2.95kg/6.5lbStand-by Current: 0.03AFull Load Current:1.1AStandby Power Consumption:0.36WFull Load Power Consumption:13.2WPacking list:1× 14.9inch 1280x390 LCD Monitor VS149ZJ01 1× Bracket1× 12V 2A Power Adapter

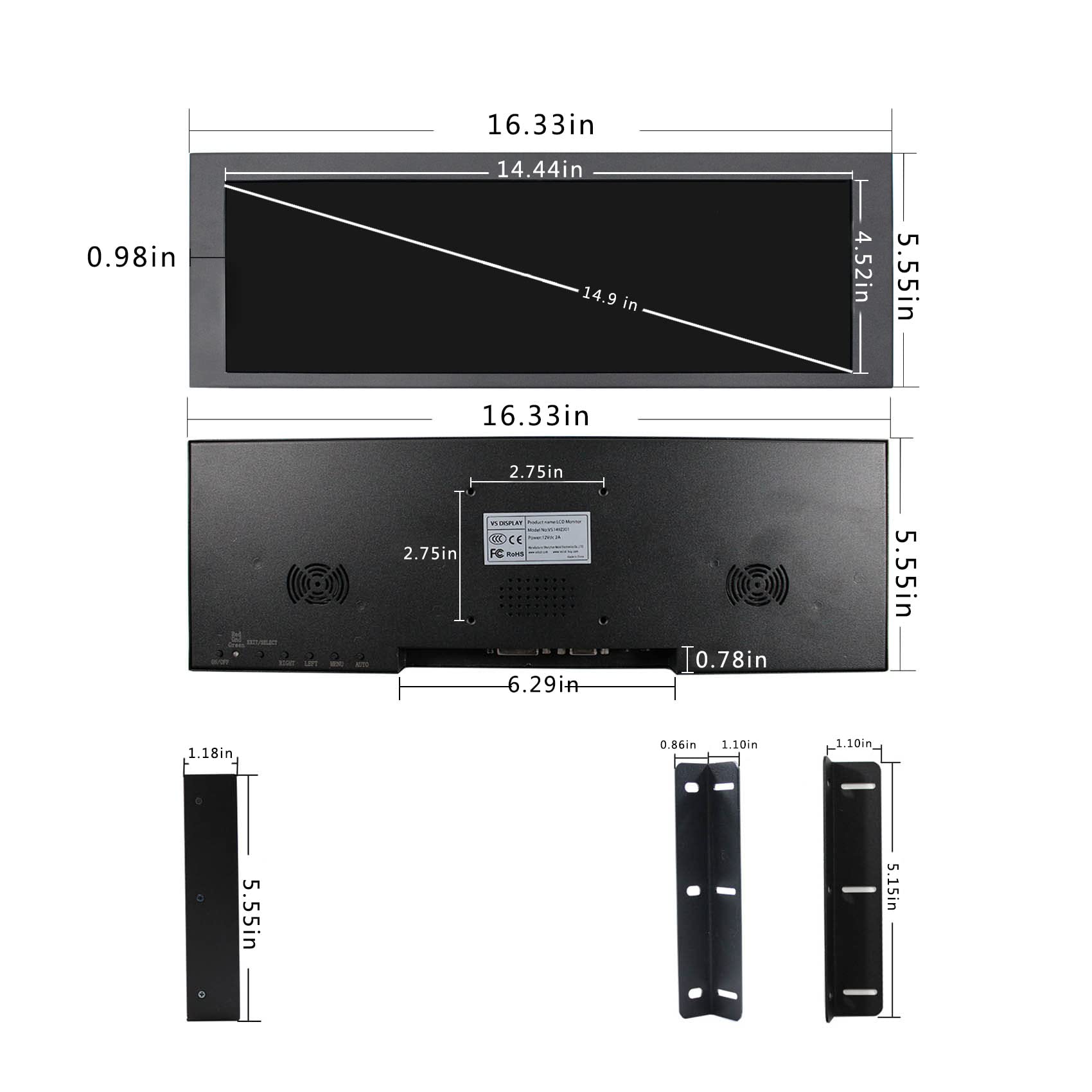

Dimension Size 412x142x31 (HxVxD)mm Display Area 360.94x109.98 (HxV)mm
Screen Resolution 1280x390 Pixels Screen Brightness 400cd/m2 Screen Contrast 5001,View Angle 80/80/45/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
Video Input HD-MI DVI VGA
screen type number LTA149B780F (refer the VSDISPLY Store 14.9" LTA149B780F 1280X390 LCD Screen +M.N68676.2A ,this product is a monitor which with a case on that one )
Packing list 1× 14.9inch 1280x390 LCD Monitor VS149ZJ01 1× Bracket 1× 12V 2A Power Adapter
I finally figured out how to get the custom 1280x390 resolution to work. These instructions should work for any Nvidia card that uses the Nvidia Windows control panel. The configuration is a little tricky because the monitor tells Windows that its resolution is 1280x720 instead of 1280x390. Using Nvidia Control Panel you need to create the 1280x390 resolution and then STRETCH it to 1280x720.Another reviewer mentioned the rack I have holding the monitor in photo #4. Web search on 4TEKY 3 RU Rack for Desktop/Wall/Rack (Black) and you will find it.See Image #11) Right-Click on your desktop and Open the NVIDIA Control Panel > Display > Change Resolution > 2) Select to highlight "AAA" monitor > Click on "Customize" Button .3) A dialog box opens, check box "Enable resolutions not exposed by the display"See Image #24) Click button "Create Custom Resolution"5) Section 1: Check box the monitor you want the custom resolution for Section 2: Change only Horizontal Pixels to 1280 & Vertical lines to 390Important: Expand "Timing" and change from "CVT Reduced Blank" and select "Manual" make sure that "Active Pixels" reads 1280 x 3906) Click the "Test" button. The monitor may complain "Out of Range". Nvidia opens a dialog, click "Yes" to save the resolution. The new resolution should appear at the top of the Resolution list under "Custom" - scroll up the list to see it.See Image #3 - this is what will actually make it work!Now go to Display > Adjust desktop size and position. Select the correct monitor, select the "scaling" tab, and select the Radio Button for "Full-screen".Confirm the resolution of 1280x390 (current).Note that Nvidia reports the "Native resolution:" as 1280x720. This is because the monitor erroneously reports it's resolution as 1280x720 instead of 1280x390.
