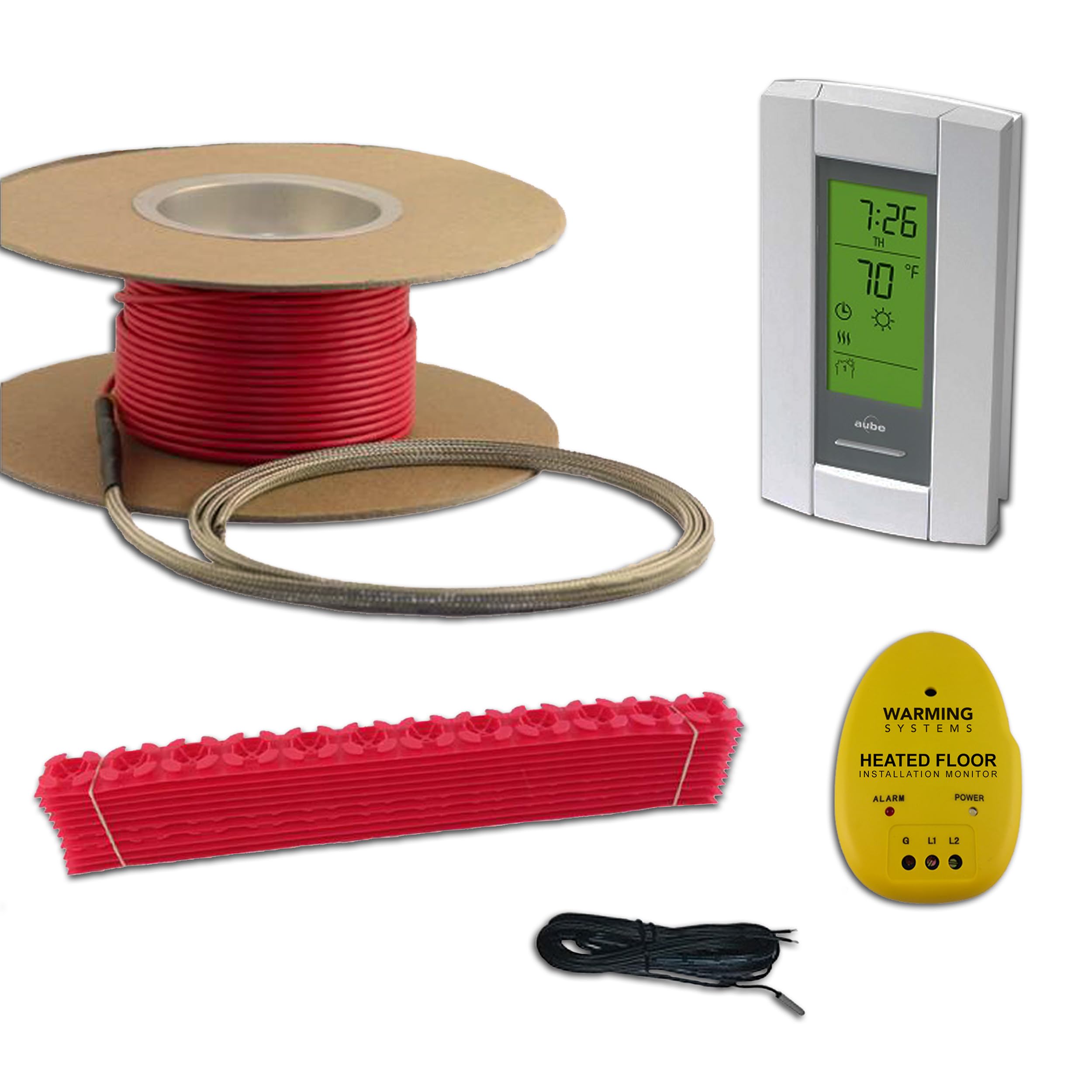

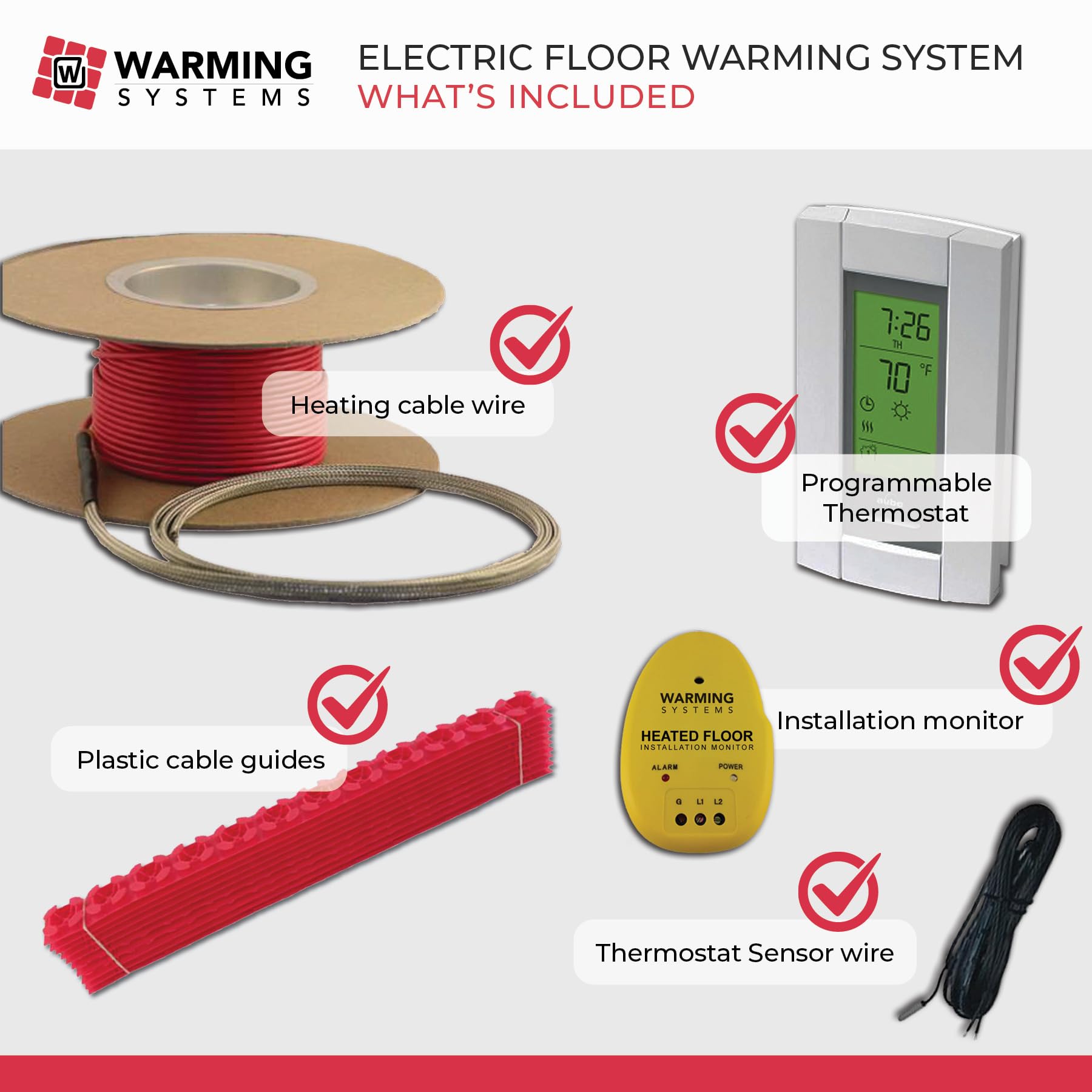

220 Sqft 240V Electric Radiant Floor Heating Kit with Programmable Thermostat & Sensor - Under Tile Heating System for Bathroom, Kitchen & Basement - Includes Heating Cables, Guides & Installation Monitor

Product Description

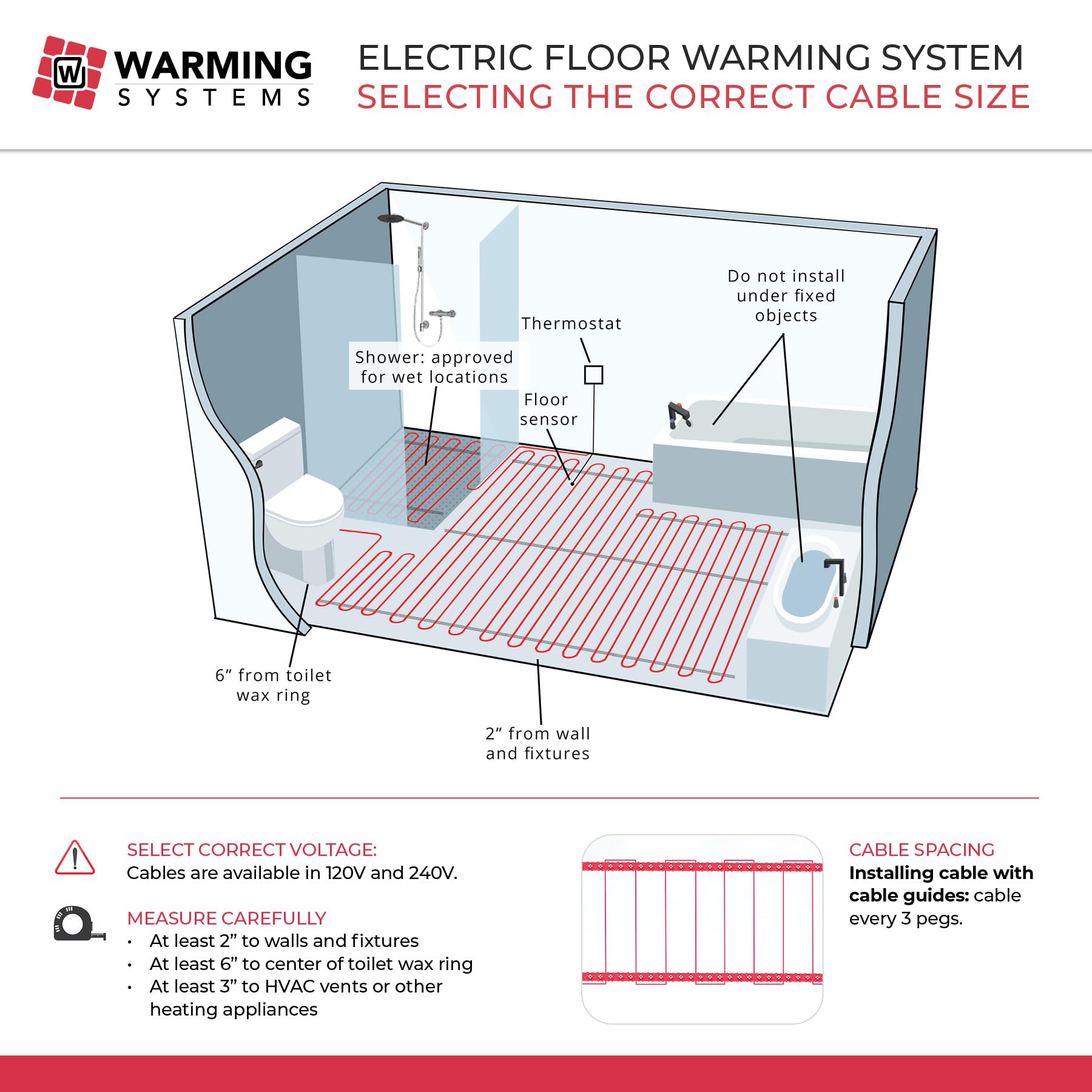

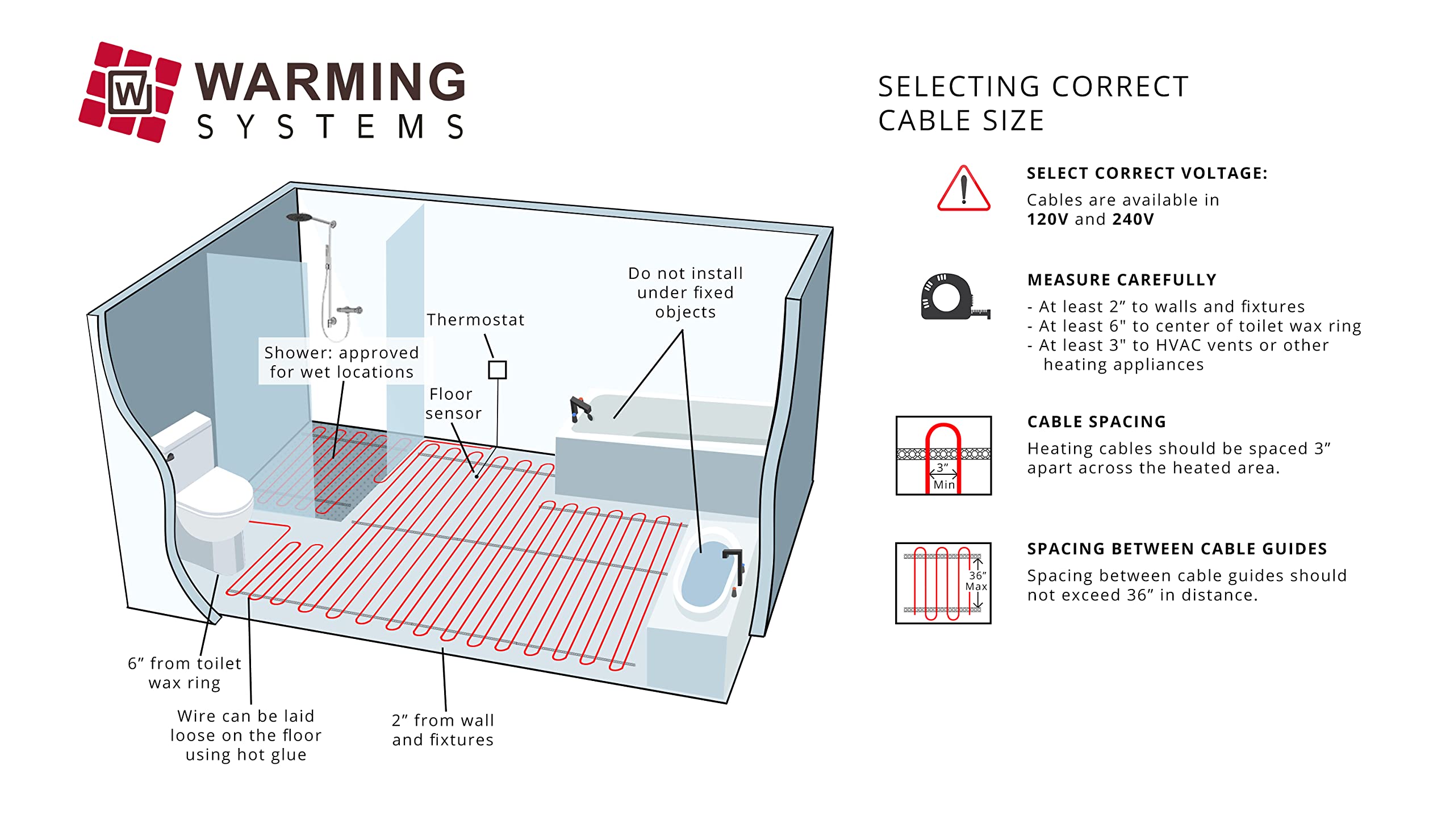

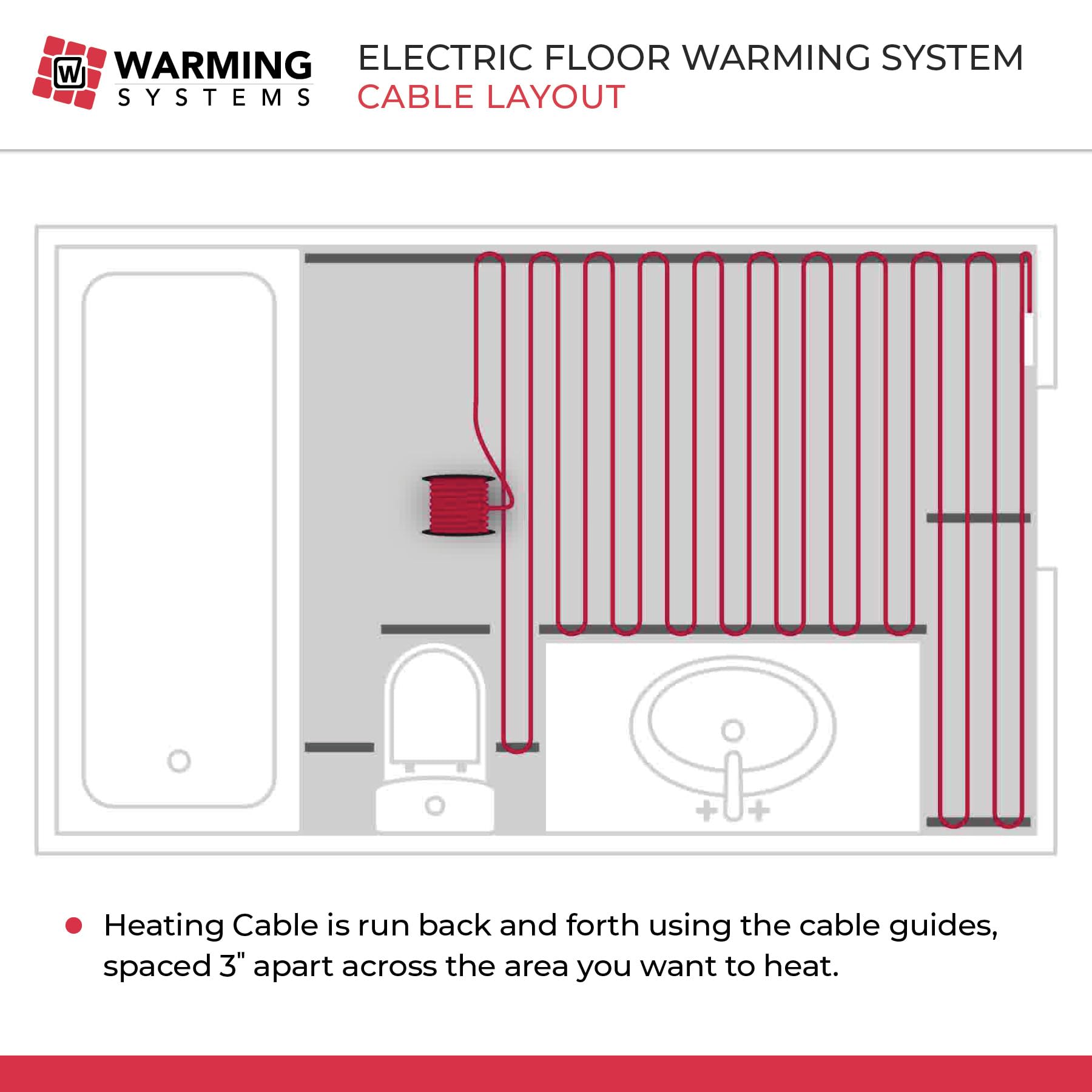

Radiant Floor Heat: Cold floors are a thing of the past when you install an electric floor Warming System. You and your family will love the added warmth and comfort our floor heating system brings to any room it's installed in. Warming System's Electric Floor Radiant Heating System: This Electric Radiant Floor Warming System and thermostat is installed under the flooring in any room in your house and will supply radiant heat, warming the floor and the room’s objects making the entire area comfortably warm. Installation: This product is a “CABLE SET” type of heating system which is wire on a spool. When installed, it is unrolled and laid on the floor 3” apart across the area to be heated. The wire is secured to the floor using the included cable guides and must be embedded in a polymer modified cement based mortar. The red heating element cannot be cut. A more detailed installation process is outlined in the instructions. Carefully calculate the square footage of the area to be heated. Do not include permanent objects or areas that are not walked on. Purchase the corresponding heating system size.Simply attach the cable guides to the floor at the boarder of the heated area. Run the heating cable back and forth 3" apart across the heated area looping it around the cable guides.Install the mortar and tile over the top of the heating system.Connect the floor heating thermostat. INCLUDED: Floor Heating Cable The Electric Floor Heating Cable consists of a spool of heating cable. Simply run the cable 3" apart across the area to heat using the cable guides to secure to the floor running the cold lead up the wall to the electrical box. These heating systems are ideal for odd shaped areas or to heat around objects. The RED HEATING ELEMENT CAN NOT BE CUT, so be sure to accurately measure the space you are heating. Programmable Thermostat with Sensor Thermostat Model # TH115-AF-240S The programmable floor sensing thermostat and floor sensor is designed to work with electric floor heating systems. It gives you the ability to accurately control the floor temperature for maximum comfort and energy savings. The thermostat features high-tech precision with straight forward, user friendly interface and contemporary design with backlit display. This floor sensing thermostat is digital, programmable, and includes the floor sensor. The thermostat is factory pre-programmed with a 7 day schedule that can be adjusted. This thermostat is 240 volt, rated for 16 amps, easily switching between F and C temperature scales. THERMOSTAT FEATURES AF mode-controls ambient temperature with floor temperature limitationF mode controls the floor temperature using an external temperature sensorTwo temperature sensors-one in floor, one in thermostat for accuracy and security Installation Monitor The Installation Monitor can help give you peace of mind while installing the floor warming system. Connect the system leads to the monitor prior to installation. The monitor will "scream" a warning in the event the heating element is cut or damaged allowing you to make any necessary repairs before the heating system is embedded in mortar. If the alarm sounds, stop work and consult the operation manual. We still recommend checking the ohms of the floor heating system with a multimeter before, during, and after installation. Red light and alarm indicates lead wires have come loose from the terminals or damage has occurred to the heating systemA white light indicates the monitor is operatingCan monitor up to 3 systems at one time when they are temporarily connected in series CABLE GUIDES Designed for fast installation of the the heating cable, simply loop the floor heating cable around the guide as you lay the cable system across the subfloor. Secure the cable guides according to the planned layout using screws, nails, adhesive or glue approved for use with the given subfloor. The heating element should be spaced 3" apart across the area to be heated. Cable guides should be run perpendicular to heating cables. The heating cables should have a minimum distance of 2" from walls and objects. Spacing between cable guides should not exceed 36" in distance. Secure the heating element to cable guides by wrapping the wire around the stud. Maintain moderate tension of cable throughout installation. Do not twist heating element and keep the minimum bending radius of the cable to 1". Cable guides are 12" long and can be cut to length. Includes enough cable guides for cable heating system. MADE IN USA Warming Systems is proudly Made in the USA. Our manufacturing facility and offices are located in Spring Grove, IL (just outside of Chicago). Our systems are made from the highest quality products and offers the best heating technology on the market.
