Digilent Analog Discovery Studio - Portable Electronics Lab Kit for Students | Circuit Design, Engineering Projects & STEM Learning | Ideal for Home, Classroom & DIY Experiments

Product Description

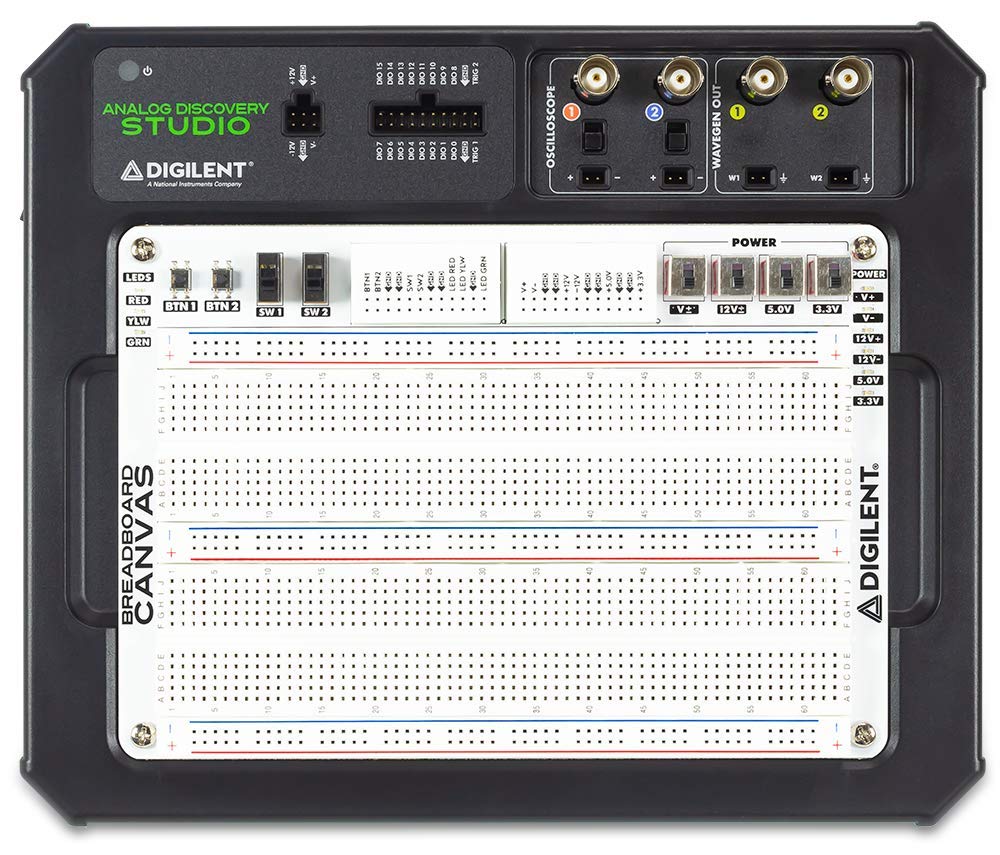

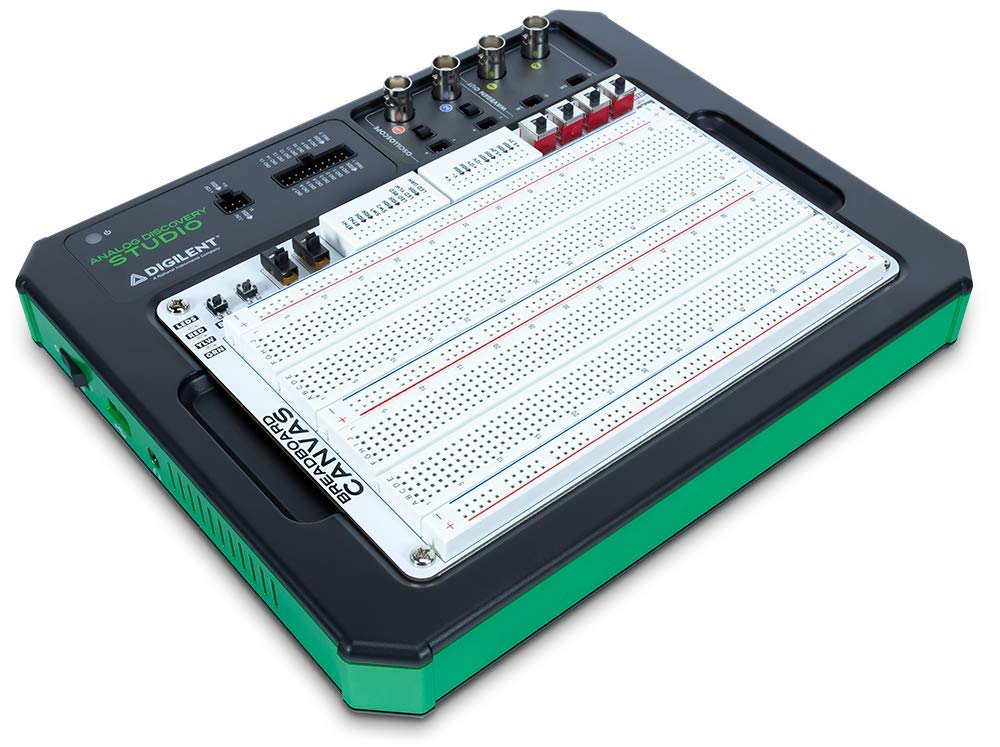

The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling student learning anywhere! With lab spaces decreasing and student enrollment increasing, many institutions are choosing studio learning as a supplement to traditional laboratories, creating a need for a portable test and measurement bench that can support all types of circuits projects. With an Analog Discovery Studio, students can continue their hands-on learning in the library, office hours, a tutoring center, a classroom, or even in a coffee shop and is available with the free Mac, Linux, and Windows compatible software, WaveForms. Designed to be a compact alternative to a stack of benchtop equipment; its durable enclosure measures 1.25 x 9.25 x 7.5 inches and fits on a bench, desktop, or backpack. Students can access the Oscilloscope and Waveform Generators via breadboardable MTE cables, or industry standard BNC cables, and the Logic Analyzer, Pattern Generator, and Triggers can be accessed via MTE cables. Circuits or designs can be built on the included, magnetically connected Breadboard Canvas and conveniently swapped out or removed for transit, making the transition from working in the lab to working at home as seamless as possible. The Breadboard Canvas also includes power supply outputs controlled by physical switches, common I/O built-in, and a large breadboardable surface. The Breadboard Canvas and the cost-optimized Blank Canvas can be purchased separately in the event that an extra is needed, or if the breadboards wear out. The Analog Discovery 2 is an alternative option to the Analog Discovery Studio if a pocket-sized or USB-powered device is needed. Products included in the shipment Analog Discovery Studio The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory Breadboard Canvas The Breadboard Canvas can be conveniently swapped out or removed for transit as it is magnetically connected, making the transition from working in the lab to working at home as seamless as possible. One Canvas is included, but are also available for sale separately if more are desired. Power Supply One 12V 2.4A power supply with UK and EU adapters is included with the purchase of Analog Discovery Studio. MTE Cables and USB A to B Cable A set of six Analog Discovery Studio MTE cables feature male-terminated flywires, perfect for connecting signals to circuits on the Breadboard Canvas. The USB A to B cable allows users to connect their Analog Discovery Studio to their computer or laptop. These are also available for separate sale if more are desired. Software Compatibility Along with the stable WaveForms application, the Analog Discovery Studio is also a programmable USB oscilloscope and logic analyzer. For more advanced users who require building applications or automated test, WaveForms Software Development Kit (SDK) is also provided. The WaveForms SDK provides libraries and examples for creating custom application in Python, C++, C#, and Visual Basic. Additional 3rd party toolbox support, examples, and documentation is available for MATLAB and LabVIEW from MathWorks and National Instruments, respectively. Perfect for comparing simulation and actual results. More information on specific operating system and programming language details can be found on the WaveForms resource center. Questions about compatibility and operating systems should be directed to the Digilent Forum. Analog Discovery Studio Features Power Supplies 12 volt supply: 12V ±5%; 0.2 Amps max -12 volt supply: -12V ±5%, 0.2 Amps max 5 volt supply: 5.0V ±5%; 1.0 Amps max 3.3 volt supply: 3.3V ±5%; 1.0 Amps max V+ and V- rails: 1V to 5V (V+), and -1V to -5V (V-) Maximum power output: 2.1W for each supply Maximum current output: 700mA for each supply. Note: Remove protective foam from underneath the Breadboard Canvas before using the power supplies Digital Inputs and Outputs Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/OChannels: 16Input logic standard: LVCMOS (1.8/3.3V, 5V tolerant)Output logic standard: LVCMOS (3.3V, 12mA) Analog Inputs Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data LoggerTwo analog input channels, through BNC or MTE connectorsChannel type: differential (MTE) or single-ended (BNC)Analog bandwidth w/ BNC cables: 30+ MHz @ 3dBAnalog bandwidth w/ MTE flywires: 9 MHz @ 3dBInput range ±25 V (±50 V diff)Input protected to ±50 V14-bit resolutionOperates at 100 MS/s Analog Outputs Used in the Waveform Generator and Network AnalyzerTwo arbitrary waveform generator channels, accessible through BNC or MTE connectorsAC amplitude (max): ±5 VAnalog bandwidth (BNC or MTE connectors: 8 MHz @ 3dB)Operates at 100 MS/s
