Waveshare 3.5 Inch Capacitive Touch Screen LCD Display for Raspberry Pi - IPS Monitor with 640×480 Resolution, DPI Interface, Tempered Glass Cover & Low Power Consumption - Perfect for DIY Projects, Smart Home Control & Embedded Systems

Product Description

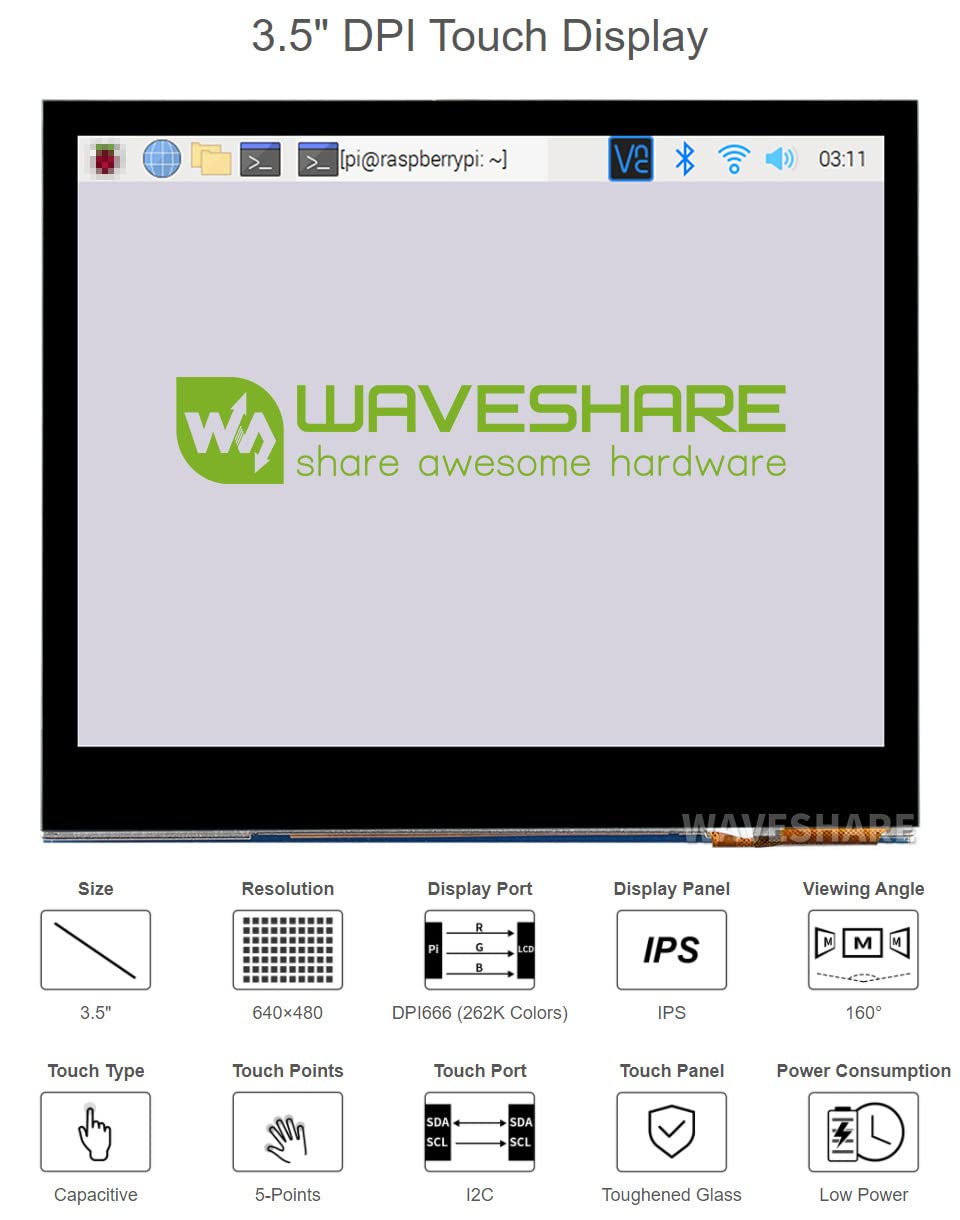

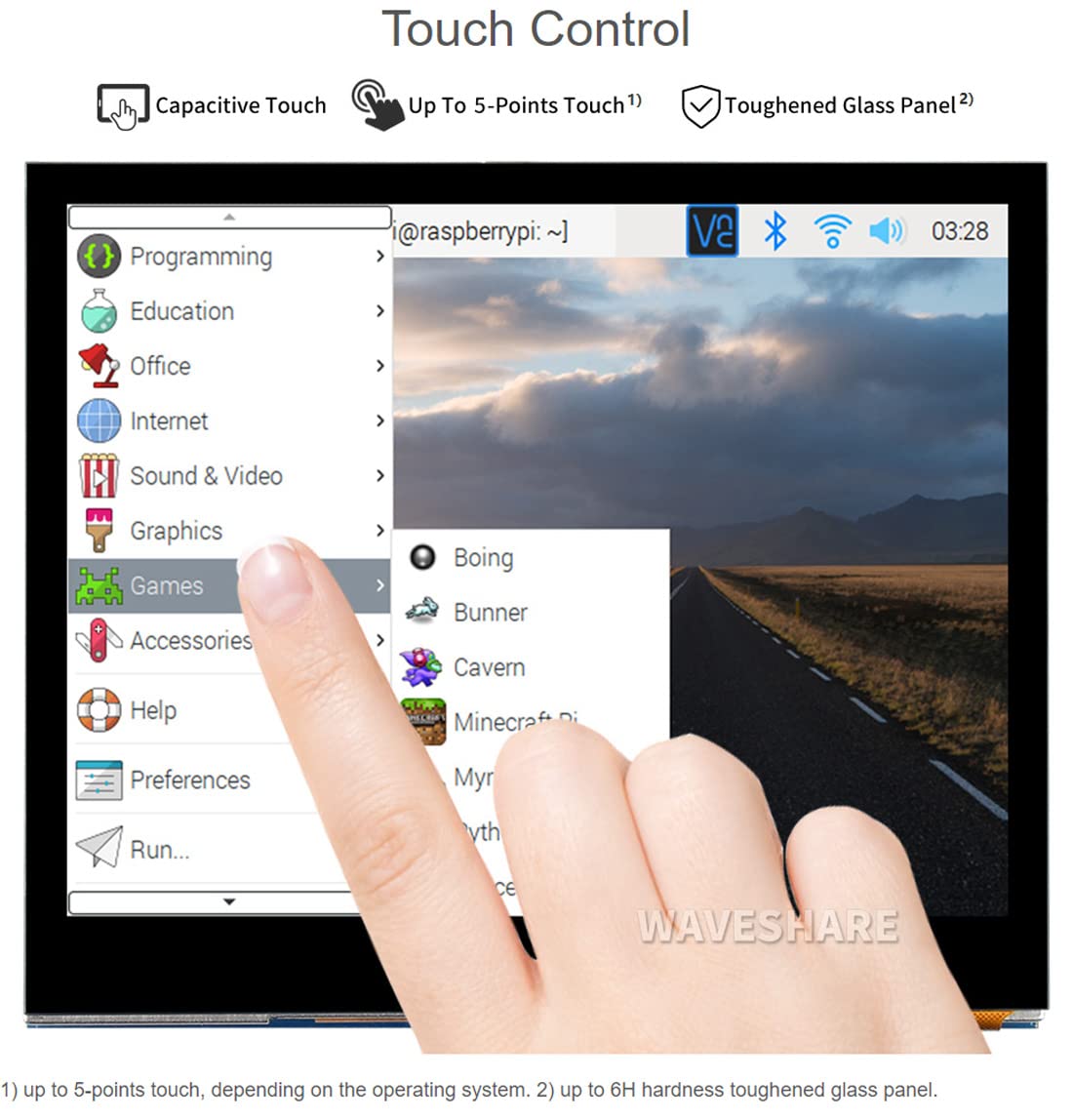

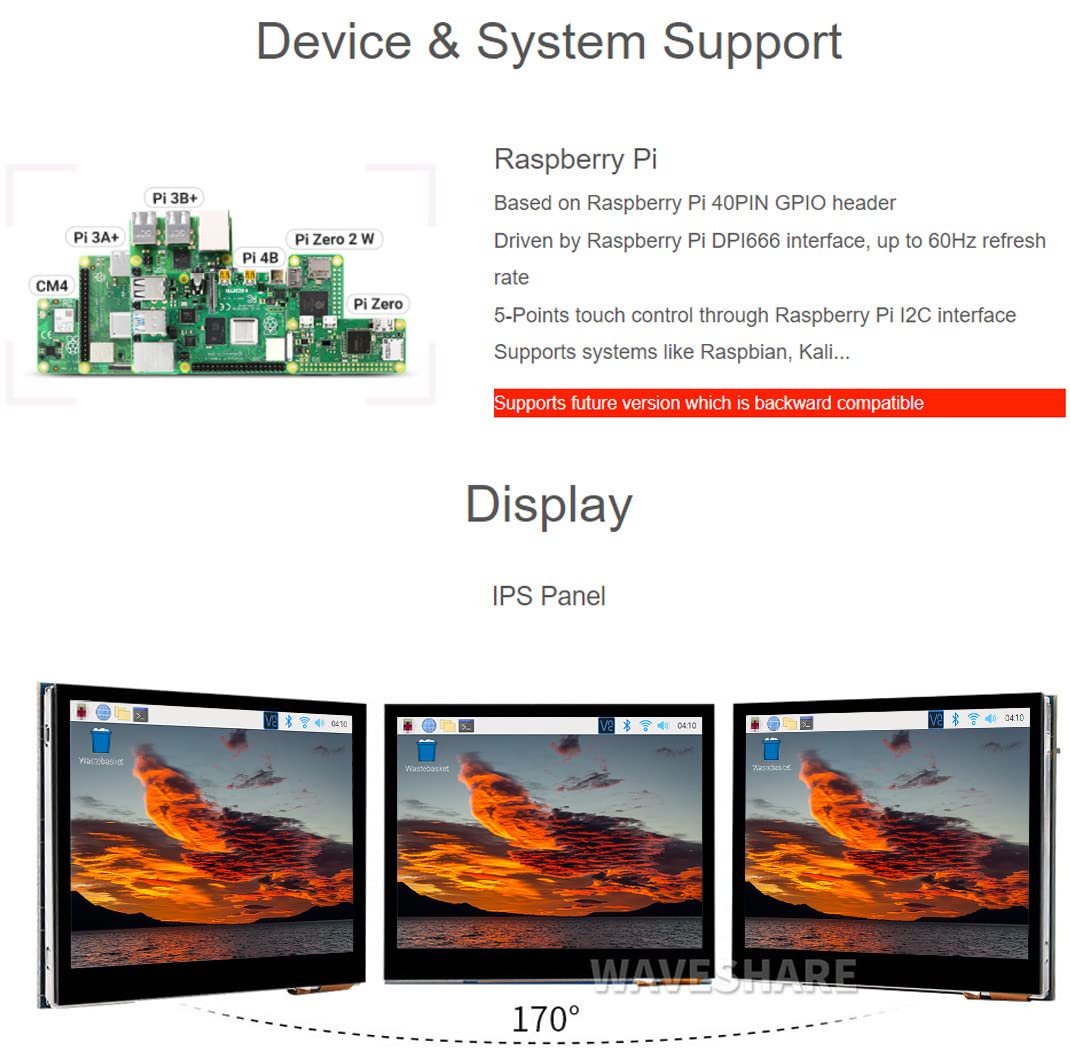

Provide online user manual, please check the manual carefully before using! Features 3.5inch IPS Display， 640x480 hardware resolution.Designed for Raspberry Pi, based on Raspberry Pi 40pin GPIO interface.Using DPI666 interface of Raspberry Pi to drive LCD, refresh rate up to 60Hz.Drive capacitive touch through I2C interface of Raspberry Pi, 5-points touch, toughened glass panel, hardness up to 6H.Supports Raspbian and Kali systems. 2.8inch DPI LCD 3.5inch DPI LCD 4inch DPI LCD (C) 5inch DPI LCD 7inch DPI LCD Add To Basket Add To Basket Add To Basket Buying Options Buying Options Customer Reviews 4.3 out of 5 stars 29 3.9 out of 5 stars 26 3.4 out of 5 stars 20 — 3.4 out of 5 stars 3 Price £39.99£39.99 £36.99£36.99 £51.99£51.99 — no data — no data RESOLUTION 480×640 640×480 720×720 800×480 1024×600 DISPLAY PORT DPI DPI DPI DPI DPI DISPLAY PANEL IPS IPS IPS IPS IPS VIEW ANGLE 160° 170° 170° 160° 170° TOUCH TYPE Capacitive Capacitive Capacitive × × TOUCH PORT I2C I2C I2C × × TOUGHENED GLASS PANEL ✓ ✓ ✓ × × FULLY LAMINATED ✓ × ✓ × × Support Raspberry Pi ✓ ✓ ✓ ✓ ✓
