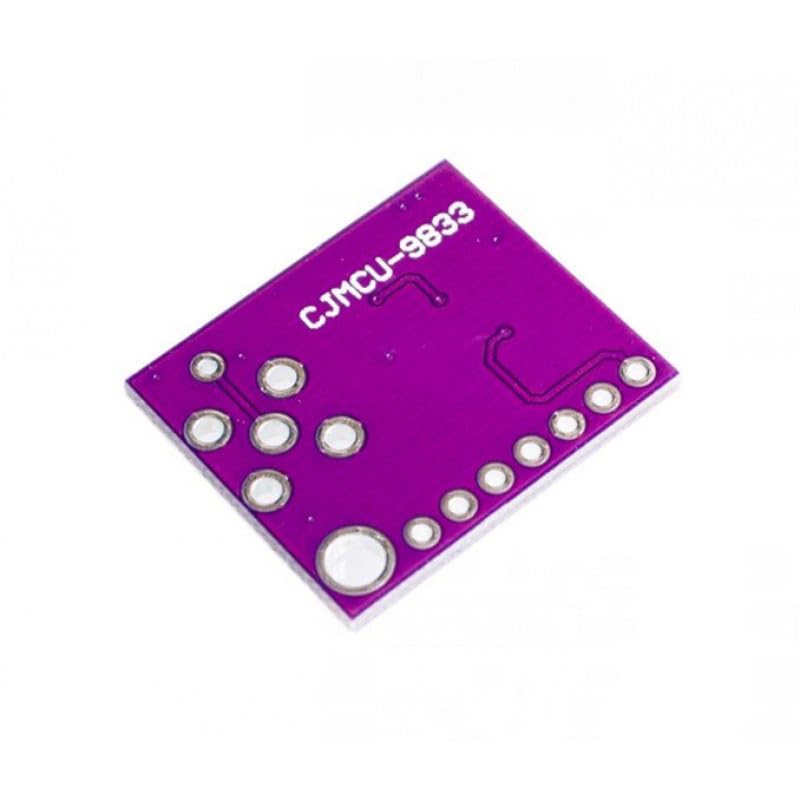

IDUINO CJMCU-9833 AD9833 Signal Generator Module for STM32 STM8 STC Microprocessors - DDS Function Sine Square Wave Output - Perfect for Electronics Testing, DIY Projects & Signal Monitoring

Product Description

CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module is a programmable waveform generator capable of generating a frequency 0-12.5MHZ sine, triangle, square wave signal. Easy to adjust, the clocked clock is 25MHz, precision 0.1Hz, the clock frequency is 1MHz, the precision is up to 0.004Hz. Frequency excitation/waveform generation. CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module is used in Liquid, gas flow measurement. Sensing applications approximation, sports, defect detection. Linear loss, linear decay, Test equipment, medical equipment, Scan clock generator. Specifications: Working voltage: 2.3V-5.5V. Working temperature range: -40 ~ + 105 Onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ. On-board high-speed amplifiers 300M and also has low-pass filtering. The two-channel output signal, an original signal output, an amplified output signal 5 times, 50Ohm output impedance. Support universal plate (tunnel plate), multiple-board pins are 2.54mm, can be easily welded universal board. Distribution STM32, STM8, STC, and other common microcontroller debugged a program and relevant information. Package Includes : 1 x CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module. 1 x Header set (Without Soldered).
